Inflatables - Aquapro Raider Cabin

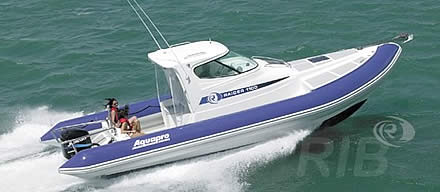

Aquapro Raider Cabin
Raider Rib hulls feature a deep V with 23-26 degree deadrise as a standard feature to provide a smooth, stable and dry ride in the most adverse conditions. Built from hand laid solid GRP, to New Zealand survey standards, these hulls provide the rapid response and high manoeuvrability required for rescue vessels and desirable for any use. The Raider is available with inboard or outboard mounted engines and surveyed fuel tanks. Intergrated buoyancy compartments make Raider RIBs completely unsinkable and with either work boat or cruising interior options, there is a Raider to perfectly suit every need. Options ranging from heavy duty towing posts fore and aft to carbon fibre dash trim and stereo/CD ensure your Raider RIB is perfect for you and your needs.

The large diameter multi compartment buoyancy tubes are constructed from the world’s finest Hypalon Neoprene Coated Fabric which is immensely strong and extremely resistant to fuel, oil, sunlight and abrasion, providing a boat that is unaffected by extreme climatic conditions (excess heat and extreme cold). The Aquapro tube has been engineered to include the most rugged bonding system with almost seamless construction fitted with double hinged internal bulkheads, with five or more separate air compartments which provide for an air holding and safety standard which is second to none. The heavy duty non return recessed inflation valves and solid external rubbing strakes fitted for extra protection make the Raider the best quality and “made for life”.
Standard Features
• Solid GRP deep V unsinkable hull
• Rugged Hypalon multi compartment buoyancy tubes
• Anchor roller fairlead and anchor locker
• Heavy duty stainless steel handrails
• Heavy duty stainless steel bolster supports
• Navigation lights, bilge pump and switch panel
• Antislip rubber deck tread
• Curved windscreen
• Mooring cleats
• Recessed fuel filler and breather
• Removable canvas companionway door cover
• Full cabin upholstery for two bunks
Optional Extras
• Bimini or Hard Top
• Heavy duty forward Sampson post
• Heavy duty aft tow post
• Removable fully upholstered aft seat incorporating storage
• Helm seat ice box
• Carbon dash face
• Internal and external grab ropes fitted to secure stainless steel rings
• Marine head and holding tank
• Lockup cabin door
• Double berth inserts
• Stereo/CD holder
• Flexi Teak Deck
• Full size curved windscreen

RDCAB 790 900 1100 1400
Ext. Length 26’
7.90m
29’7”
9.00m
36’
11.0m
46’
14.0m
Ext. Beam 9’6”
2.90m
9’10”
3.00m
11’4”
3.47m
15’
4.57m
FSW Tube dia 18”
.475m
23”
.580m
26”
.675m
28”
.710m
AFT Tube dia 22”
.575m
24”
.610m
26”
.675m
28”
.710m
Air Chambers 5 7 7 7
Payload 3300 lb
1500 kg
3960 lb
1800 kg
4950 lb
2250 kg
9900 lb
4500 kg
Max HP/Shaft 225 XL 500 XL 600 XL 1000 IB
