Inflatables - Aquapro Raider Console

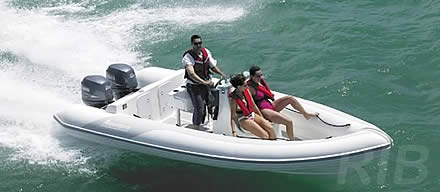

Raider Console RIB utilises the same proven deep V hull and tube design as the Raider cabin range. This is the perfect work boat featuring plenty of deck space making this range of RIBs suited to the professional yachtsman and diver. With rugged unsinkable fibreglass hulls and tough Hypalon multi compartment buoyancy tubes, this boat is built to work and last.

RAIDER console RIBs are commonly used by America’s Cup syndicates Prada, Stars & Stripes and Oracle Racing, chosen for their exceptional sea handling and stability under extreme conditions: the RAIDER has passed the test.
The RAIDER console options include cudy console with marine head and bimini top or small helm console for maximum deck and work area.

Standard Features

• Solid GRP deep V unsinkable hull
• Rugged Hypalon multi compartment buoyancy tubes
• Anchor roller fairlead and anchor locker
• Heavy duty stainless steel handrails
• Heavy duty stainless steel bolster supports
• Navigation lights, bilge pump and switch panel
• Antislip rubber deck tread
• Transom boarding ladder
• Curved windscreen
• Mooring cleats
• Recessed fuel filler and breather
• Console upholstery package includes forward seat and bolster helm station

Optional Extras

• Bimini option
• Heavy duty forward Sampson post
• Heavy duty aft tow post
• Removable fully upholstered aft seat incorporating storage
• Internal and external grab ropes fitted to secure stainless steel rings
• Flexi Teak Deck

RDC	605	665	790	900	1100	1400
Ext. Length	19’10” 6.05m	21’10” 6.65m	26’ 7.90m	29’7” 9.00m	36’ 11.0m	46’ 14.0m
Ext. Beam	8’2” 2.50m	9’ 2.75m	9’6” 2.90m	9’10” 3.00m	11’4” 3.47m	15’ 4.57m
FSW Tube dia	17” .435m	17” .435m	18” .475m	23” .580m	26” .675m	28” .710m
AFT Tube dia	21” .550m	21” .550m	22” .575m	24” .610m	26” .675m	28” .710m
Air Chambers	5	5	5	7	7	7
Payload	2552 lb 1160 kg	3080 lb 1400 kg	3300 lb 1500 kg	3960 lb 1800 kg	4950 lb 2250 kg	9900 lb 4500 kg
Max HP/Shaft	130 L	150 XL	225 XL	500 XL	600 XL	1000 IB
